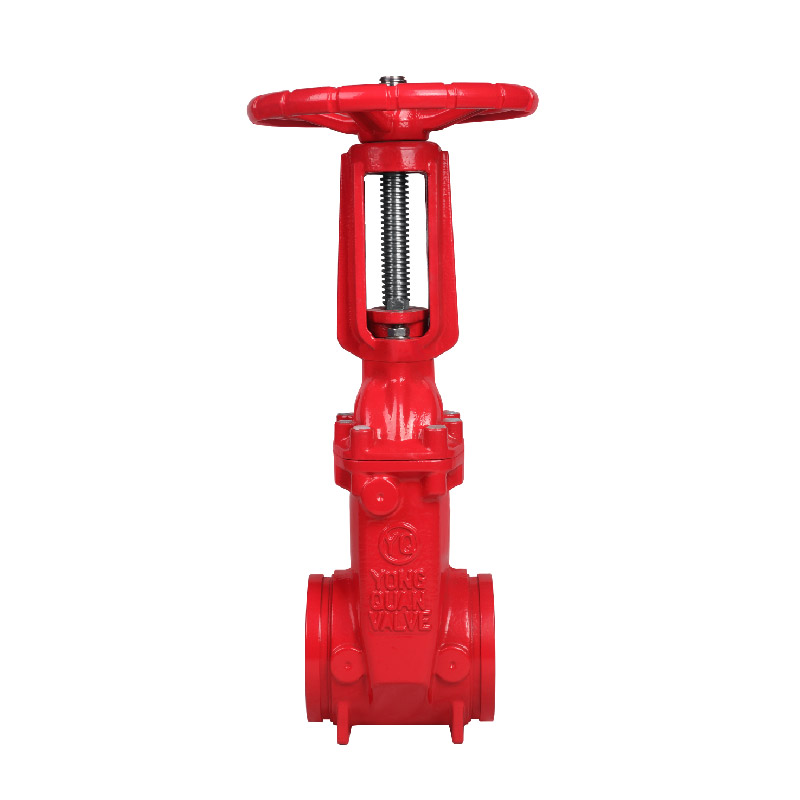

Gate Valve（OS＆Y,Groove Type）
Meet or exceed the requirements of ANSI/AWWA C515 Standard.
Full Waterway.
2” Square Operating Nut or Handwheel.
Robust Design.
O-Ring Stem Seal.
Adjustable Packing.
Rubber fully Encapsulated Ductile lron Wedge.
Face to Face Dimension comply with ANSI/ASME B16.10 and EN558 Series 3.
Flange and Drilling comply with ANSI/AMSE B16.42 Class 150.
Joints Outlet complies with ANSI/AWWA C110 Standard.
UL 262 Listed and FM 1120/1130 Approved.
Rated Working Pressure:PN 16.
Indicates the State of the Valve OPEN or SHUT Position.
Easily Adjustable Indicator OPEN and SHUT Targets.
Handwheel -open left.
|
Part |
Material |
Specification |
|
Body |
Ductile Iron |
EN-GJS-450-10 |
|
Wedge |
EPDM Fully Encapsulated Ductile Iron |
|
|
Wedge nut |
Brass |
CuZn39Pb3 |
|
Bonnet |
Ductile Iron |
EN-GJS-450-10 |
|
Stem |
Stainless Steel |
1.4301（304） |
|
Stem Nut |
Brass |
CuZn39Pb3 |
|
Packing |
Graphite |
Non-asbestos |
|
Gland |
Ductile Iron |
EN-GJS-450-10 |
|
Gland Stud |
Stainless Steel |
1.4301（304） |
|
Body/Bonnet Gasket |
Rubber |
EPDM |
|
Handwheel |
Ductile Iron |
EN-GJS-450-10 |
