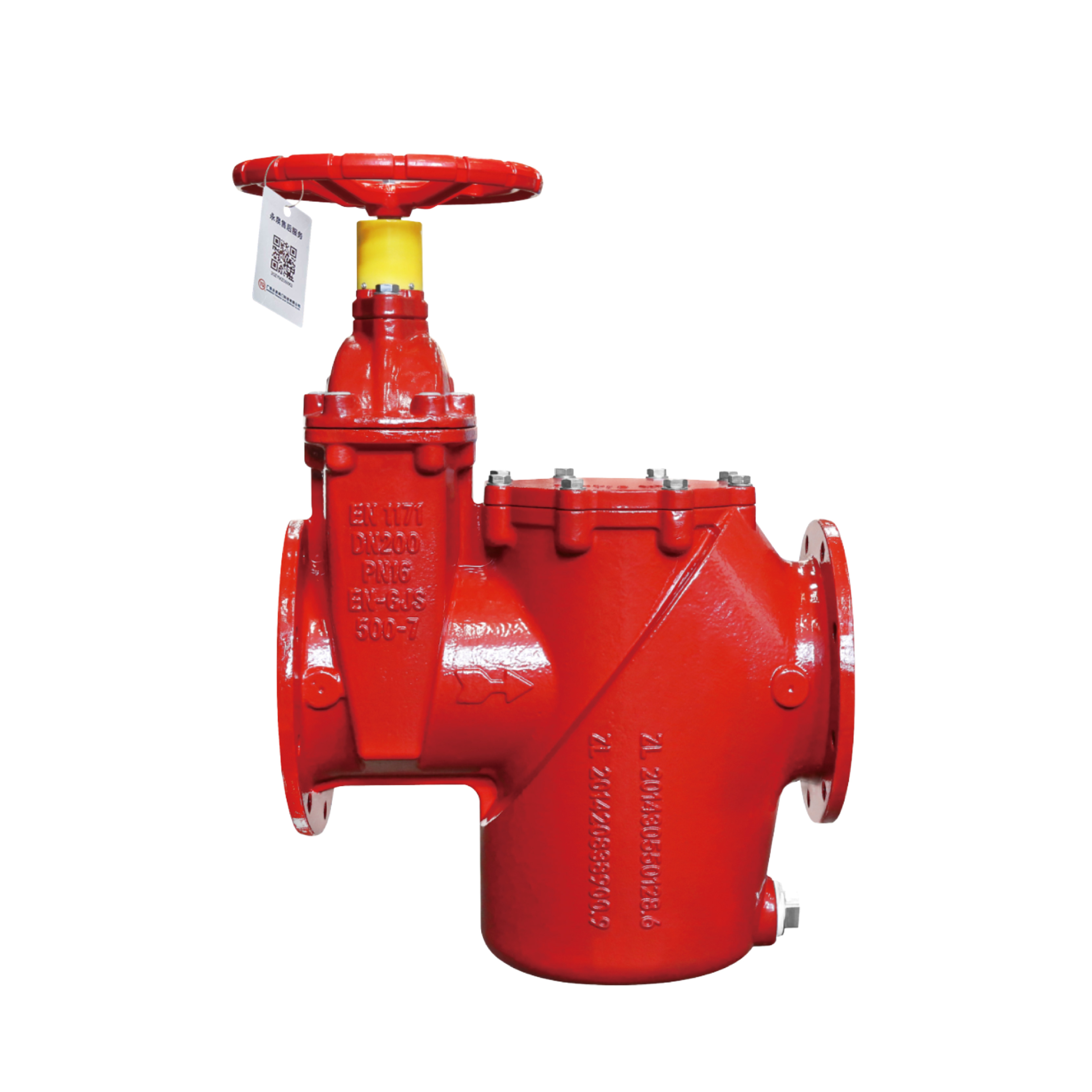

Gate Valve（With Bucket Strainer）
Meet or exceed the requirements of ANSI/AWWA C515 Standard.
Adjustable Packing.
Square Operating Nut, Handwheel or magnetic key.
Full Waterway.
O-Ring Stem Seal.
Rubber fully Encapsulated Ductile lron Wedge.
Face to Face Dimension comply with ANSI/ASME B16.10and EN558 Series 3.
Space Saving Design.
Flange and Drilling comply with ANSI/AMSE B16.42 Class 150.
UL 262 Listed and FM 1120/1130 Approved,+ Rated Working Pressure:PN 16/25.
Fusion Bonded Epoxy Coated Interior and Exterior to ANSl/AWWA C550 Standard.
|

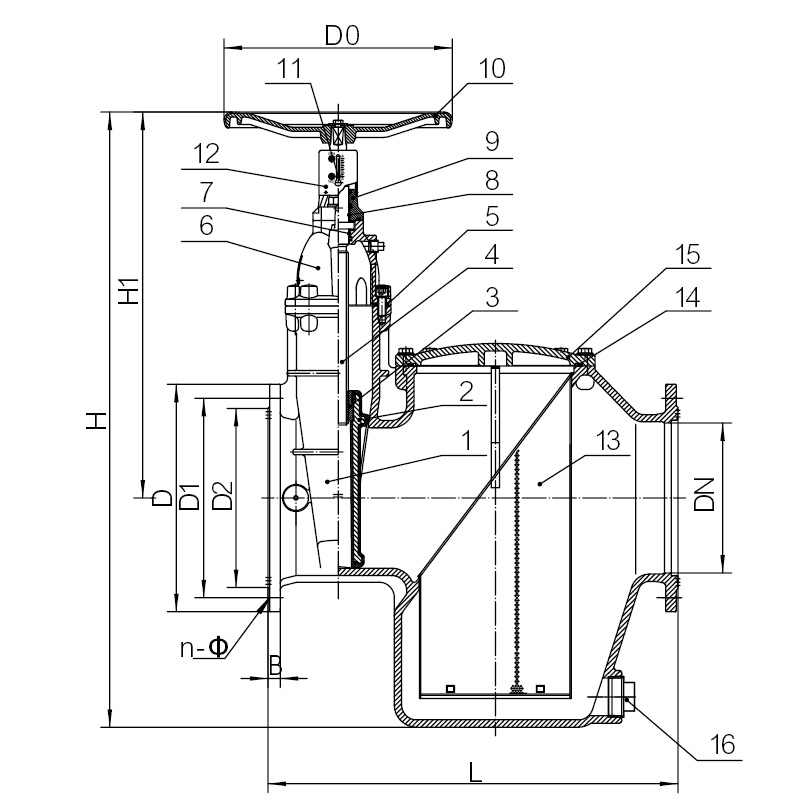

IDX |
Parts Name |
Parts Material |
|
1 |
Body |
D.I. EN-GJS-500-7 |
|
2 |
Wedge |
D.I. EN-GJS-500-7+EPDM/NBR |
|
3 |
Stem Nut |
Copper Alloy CC331G |
|
4 |
Stem |
Stainless steel 304 |
|
5 |
Gasket |
EPDM/NBR |
|
6 |
Bonnet |
D.I. EN-GJS-500-7 |
|
7 |
Lower Sleeve |
Copper Alloy CC331G |
|
8 |
Upper Sleeve |
Copper Alloy CC331G |
|
9 |
Cover |
D.I. EN-GJS-500-7 |
|
10 |
Handwheel |
D.I. EN-GJS-500-7 |
|
11 |
Indicator |
Brass |
|
12 |
Filter Room |
ABS |
| 13 |
Indicator Cylinder |
Stainless steel 304 |
|
14 |
Filter Room Gasket |
EPDM/NBR |
|
15 |
Remove Cover |
D.I. EN-GJS-500-7 |
| 16 |
Pipe Plug |
Stainless steel 316 |
