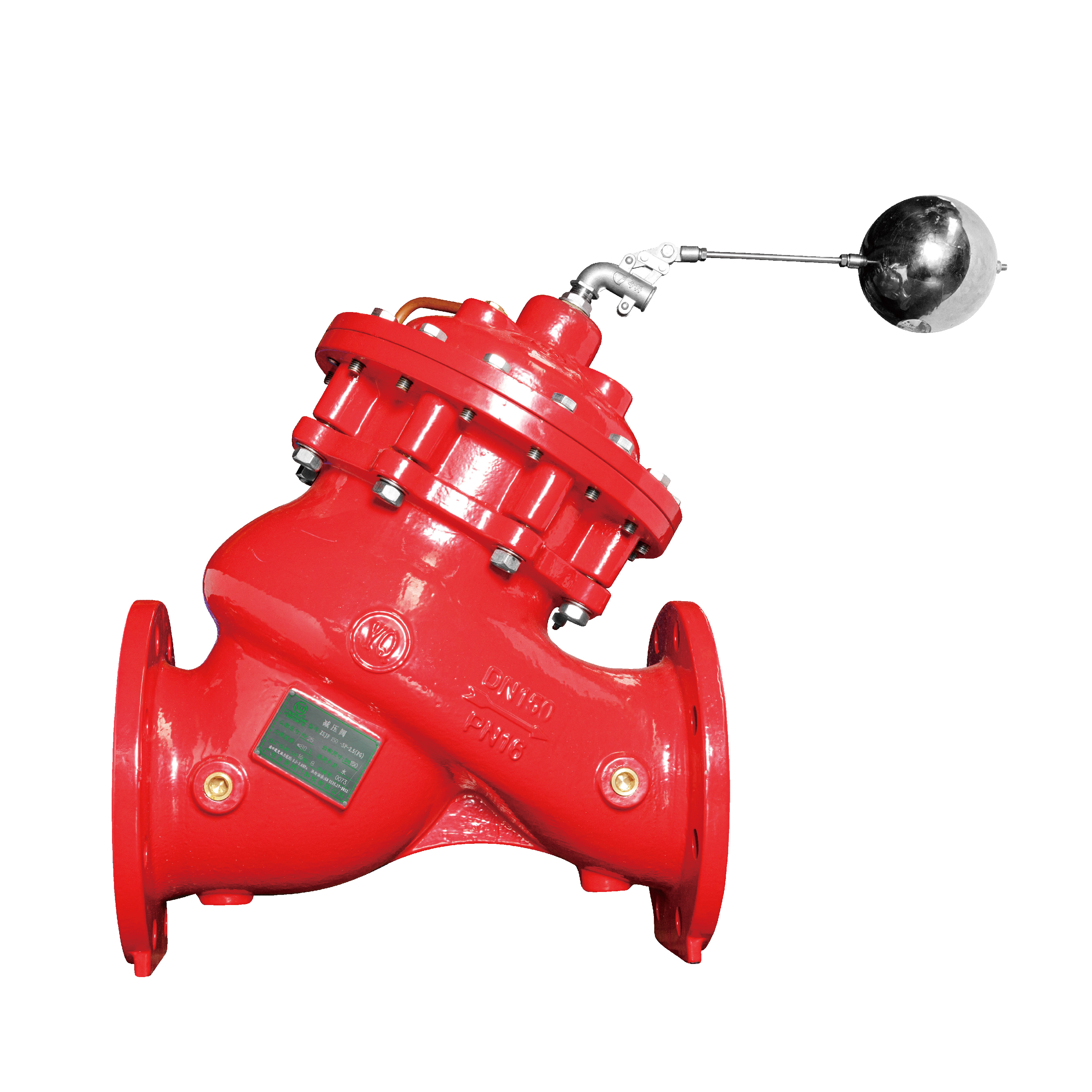

Modulating Float Control Valve
Modulating float control valve offers a consistently reliable seal, with a resilient double diaphragm structure. An EPDM ring seals against an aluminum bronze body seat.
Angle design type offers smooth operation with low resistance.
Built-In Safety Features. The closing speed can be controlled,providing for smooth flow without pressure surges, water hammer, pipe vibration, or noise.
Connected Flange complies with ASME B16.1 Class 125 and EN 1092-2 PN 16/25.(Other Flange and Groove Types available upon request )
Working Pressure is PN 16/25.
Fusion Bonded Epoxy Coated Interior and Exterior to ANSl/AWWA C550 Standard.
|
No. |
Part |
Material |
|
1 |
Body |
D.I. EN-GJS-500-7 |
|
2 |
Guide |
Copper Alloy CC331G |
|
3 |
Seat |
Stainless Steel 304 |
|
4 |
Sealing Gasket |
EPDM |
|
5 |
Clapper |
Stainless Steel 304 |
|
6 |
Stem |
Stainless Steel 304 |
|
7 |
Spring |
Stainless Steel 304 |
|
8 |
Cavity |
D.I. EN-GJS-500-7 |
|
9 |
Diaphragm |
EPDM |
|
10 |
Bonnet |
D.I. EN-GJS-500-7 |
|
11 |
Pressing Plate |
D.I. EN-GJS-500-7 |
|
12 |
Top Ring |
Stainless Steel 304 |
|
13 |
Copper Bushing |
Copper Alloy CC331G |
|
14 |
Plug |
Brass |
