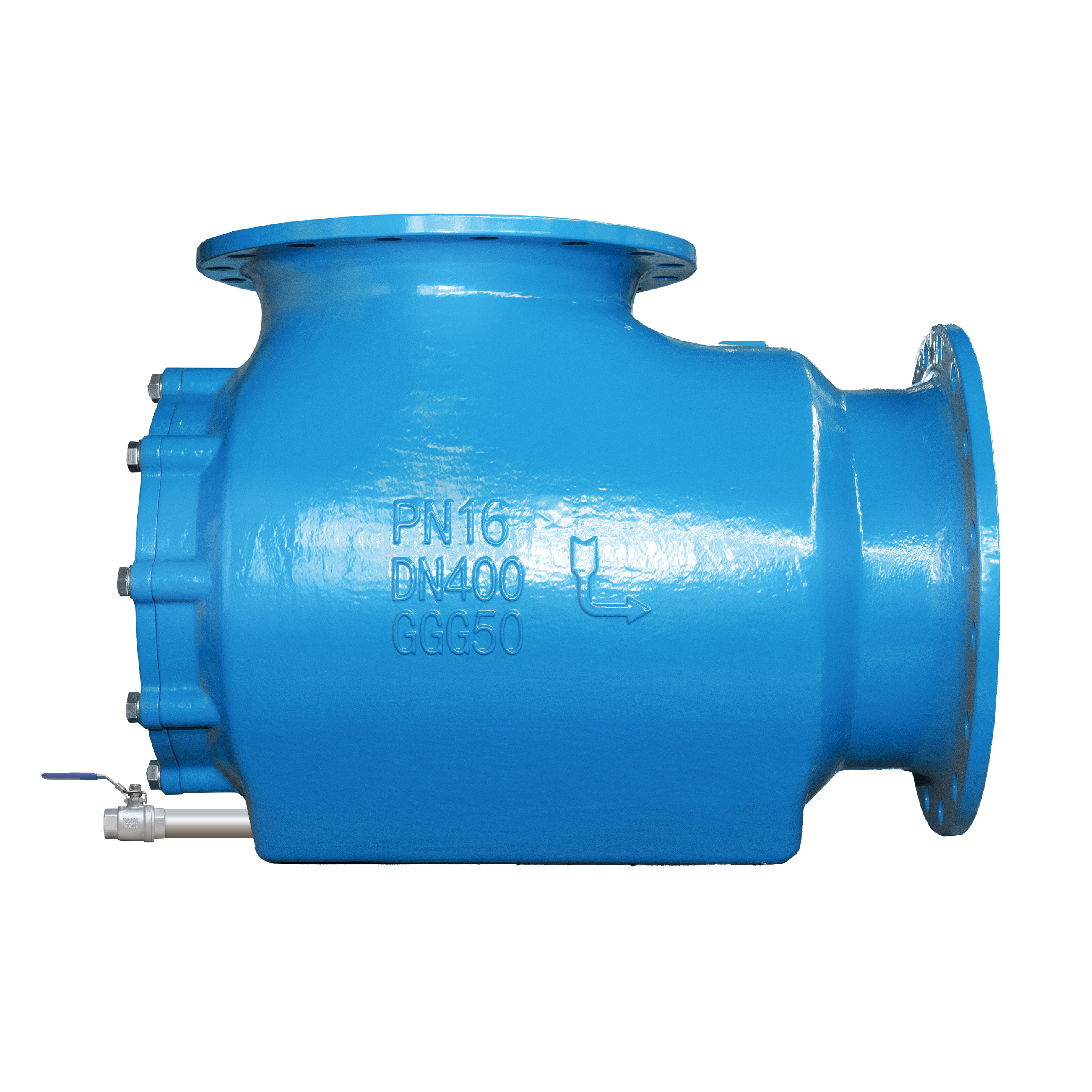

Suction Diffuser

Suction Diffuser

  • PN 10/16/25
  • Material
    Ductile iron
  • Nominal diameter
    DN80-500
  • Face to face standard
    Series 3 of BS EN558-1
  • Flange drilling
    BS EN 1092
Features

Filter scheme of coarse and fine double mesh structure.


Different inlet & outlet size available.


Vertical or horizontal installation.


Built-insupporter and drain plug.


Guide vane with durable design.


Hinges for size bigger than 400mm.


Unique design of “cross” shaped Rectifier plate.


Provide pipe network to stabilize water flow.


Wide cavity body design.


Suction diffuser flow-pressure loss is very low.


Material

No.

Part

Material

1

Body

EN-GJS-500-7 Ductile Iron Coated with Expoxy Coating

2

O-ring seal

EPDM/NBR

3

Cover

EN-GJS-500-7 Ductile Iron Coated with Expoxy Coating

4

Plug screw

BS EN 10088-1:2014 1.4401[SS304]

5

Screen

BS EN 10088-1:2014 1.4401[SS304]

6

Bolt

BS EN 10088-1:2014 1.4401[SS304]

7

Ball Valve

BS EN 10088-1:2014 1.4401[SS304]

Main Dimention

  • DN
    A
    D$PN10
    D$PN16
    D$PN25
    C
    n-Φ$PN10
    n-Φ$PN16
    n-Φ$PN25
    L
    H1
    H2
    O
  • 80
    200
    160
    160
    160
    19
    8-19
    8-19
    8-19
    131
    245
    201
    G1/2
  • 100
    220
    180
    180
    180
    19
    8-19
    8-19
    8-23
    146
    300
    212
    G1/2
  • 125
    250
    210
    210
    210
    19
    8-19
    8-19
    8-23
    178
    350
    240
    G1/2
  • 150
    285
    240
    240
    240
    19
    8-23
    8-23
    8-28
    203
    410
    260
    G1/2
  • 200
    340
    295
    295
    310
    20
    8-23
    12-23
    12-28
    248
    500
    301
    G3/4
  • 250
    405
    350
    355
    370
    22
    12-23
    12-28
    12-31
    311
    630
    342
    G3/4
  • 300
    460
    400
    410
    430
    24.5
    12-23
    12-28
    16-31
    350
    700
    420
    G3/4
  • 350
    520
    460
    470
    490
    26.5
    16-23
    16-28
    16-34
    394
    800
    460
    G1
  • 400
    580
    515
    525
    550
    28
    16-28
    16-31
    16-37
    457
    920
    500
    G1
  • 450
    640
    565
    585
    600
    30
    20-28
    20-31
    20-37
    483
    1030
    630
    G1-1/2
  • 500
    715
    620
    650
    660
    31.5
    20-28
    20-34
    20-37
    575
    1150
    700
    G1-1/2
