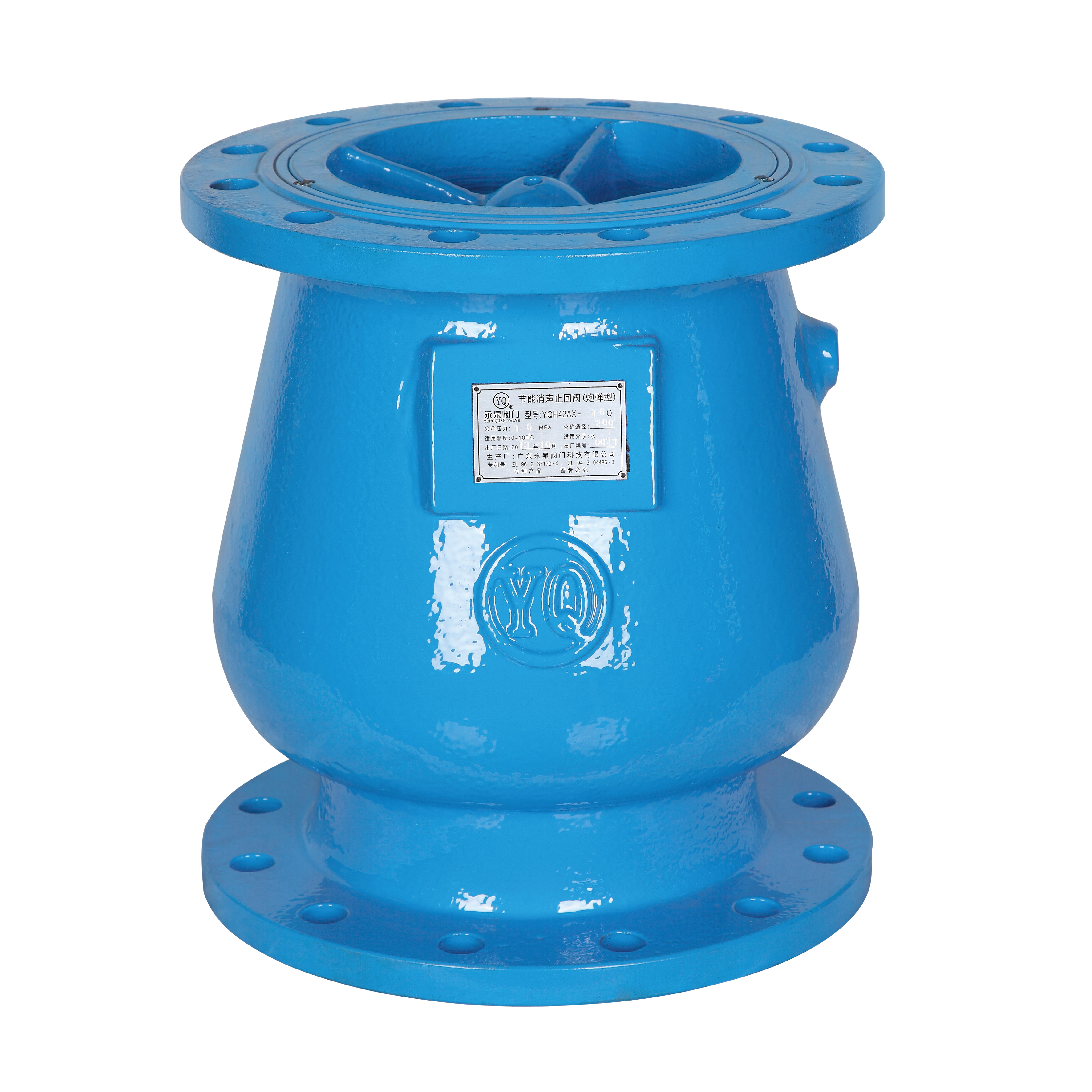

Energy-saving Silent Check Valve(Projectile Type)

Energy-saving Silent Check Valve(Projectile Type)

  • PN 10/16/25
  • Material
    Ductile iron
  • Nominal diameter
    DN200-450
  • Face to face standard
    Series 3 of BS EN558-1
  • Flange drilling
    BS EN 1092
Features

The body cavity adopts a streamlined design, with a flowrate of 100%,reducing sharp bends, corners, and sharp protrusions, thereby reducing resistance.


The valve disc is designed with a conical shape, greatly reducing resistance and minimizing noise caused by turbulence.


The closing stroke of the valve disc is short, only 1/4 of thenominal diameter, reducing the closing time of the valvedisc and minimizing the generation of water hammer.


The spring to accelerate the closing speed of the valve discand reduce the generation of water hammer.


Material

No.

Part

Material

1

Body

D.I. EN-GJS-500-7

2

Disc

EN-GJS-500-7+EPDM

3

Spring

Stainless Steel 631

4

Stem

Stainless Steel 304

5

Guide Sleeve

POM/Bronze

6

Guide Vane

D.I. EN-GJS-500-7

Main Dimention

  • DN
    D$PN16
    D$PN25
    K$PN16
    K$PN25
    L$PN16
    L$PN25
    N-Φ$PN16
    N-Φ$PN25
  • 200
    340
    360
    295
    310
    400
    400
    12-22
    12-27
  • 250
    405
    425
    355
    370
    450
    450
    12-27
    12-30
  • 300
    460
    485
    410
    430
    500
    500
    12-27
    12-30
  • 350
    520
    555
    470
    490
    550
    550
    16-27
    16-34
  • 400
    580
    620
    525
    550
    600
    600
    16-31
    16-37
  • 450
    640
    670
    585
    600
    650
    650
    20-31
    20-37
