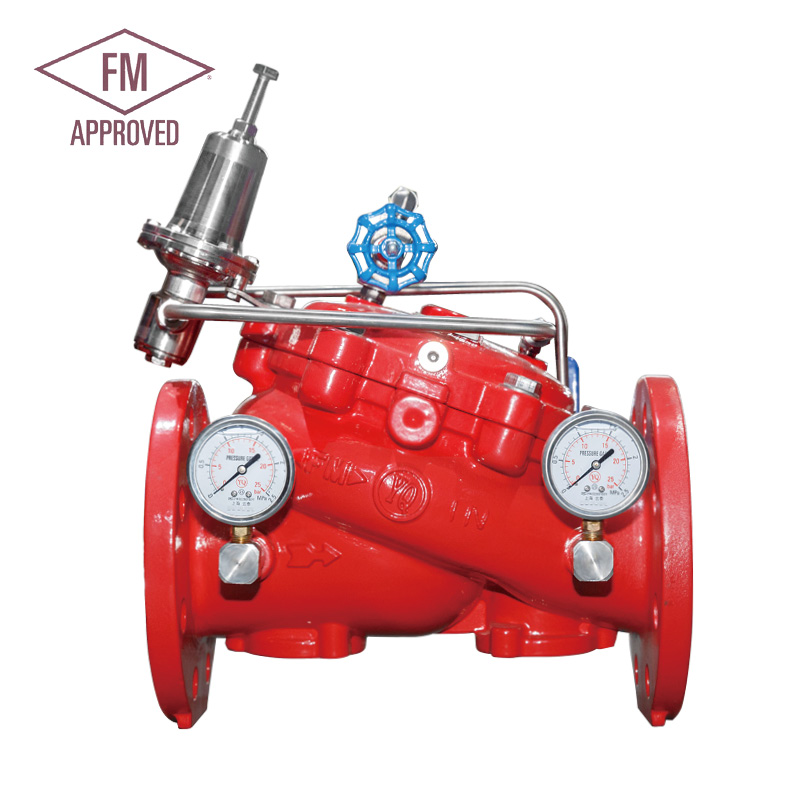

Pressure Reducing Valve FL×FL Ends

Pressure Reducing Valve FL×FL Ends

  • PN 16/25
  • Material
    Ductile iron
  • Nominal diameter
    DN50-300
  • Face to face standard
    Series 1 of BS EN558-1
  • Flange drilling
    EN 1092-2 PN16
  • Document Download.pdf
Features

Pressure Reducing Valve：Reducing a higher upstream pressure into a lower,constantdownstream pressure.


Constant Outlet Pressure over Wide Flow Range.


Pilot-operated main valve not subject to pressure fall off.


Outlet Pressure is adjustable with single screw.


Stabilized regulation at near-zero flow.


Flange Ends complies with EN 1092-2 PN16, ANSIClass125/150/250.(Other available on request)


FM 1362 Approved.


Enamel Paint or Fusion Bonded Epoxy Coated Interior and Exterior.


Material

微信图片编辑_20241022150728

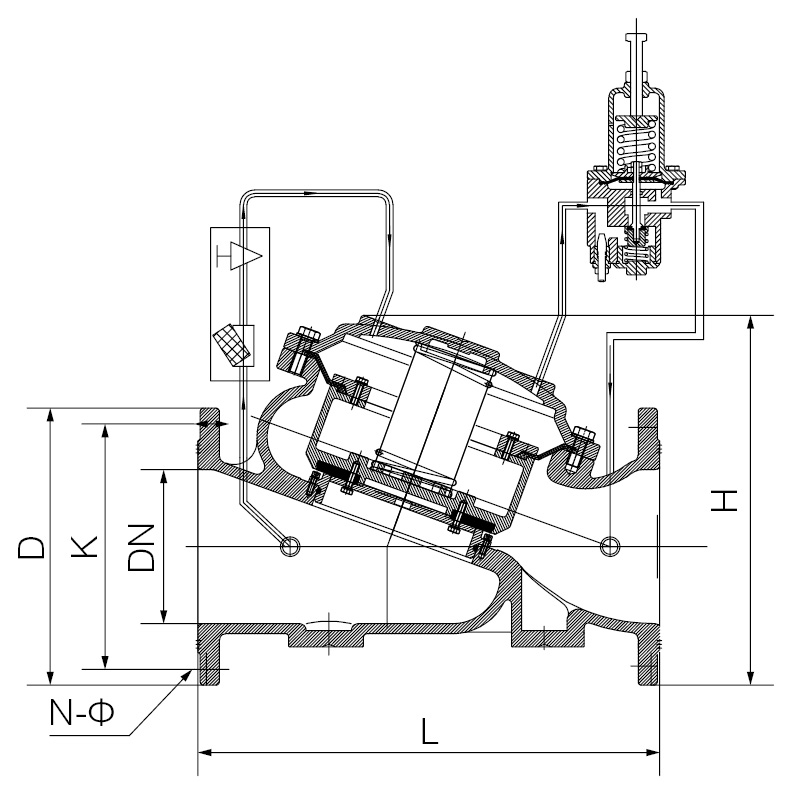

Main Dimention

  • DN
    L
    H
    D$PN16
    D$PN25
    K$PN16
    K$PN25
    N-Φ$PN16
    N-Φ$PN25
  • 50
    230
    186
    165
    165
    125
    125
    4-19
    4-19
  • 65
    290
    224
    185
    185
    145
    145
    4-19
    8-19
  • 80
    310
    271
    200
    200
    160
    160
    8-19
    8-19
  • 100
    350
    346
    220
    235
    180
    190
    8-19
    8-23
  • 150
    480
    408
    285
    300
    240
    250
    8-23
    8-28
  • 200
    600
    540
    340
    360
    295
    310
    8-23
    8-28
  • 250
    730
    565
    405
    425
    355
    370
    12-28
    12-31
  • 300
    850
    644
    460
    485
    410
    430
    12-28
    16-31
