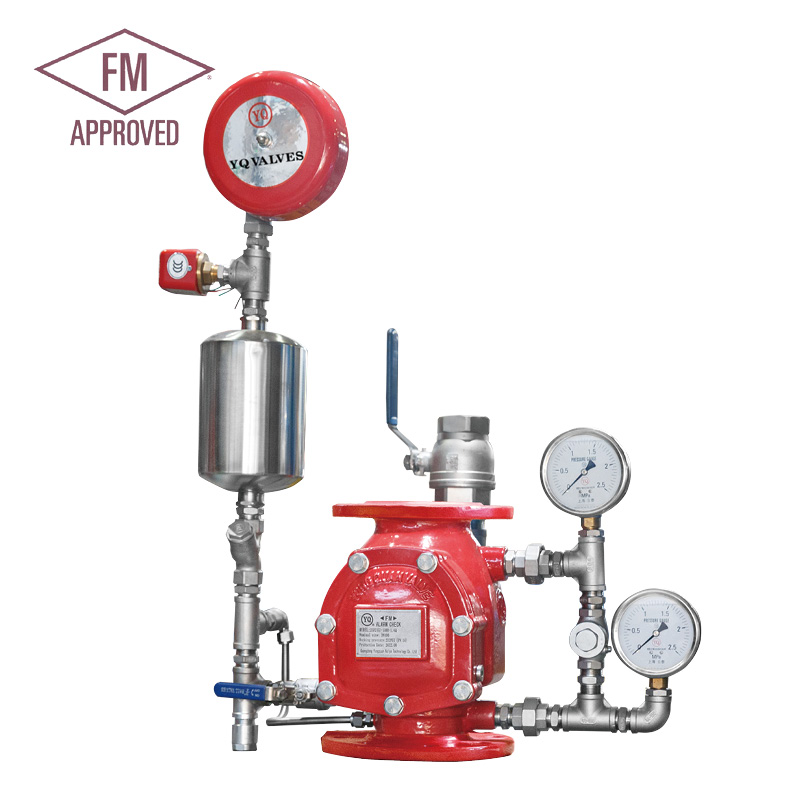

Wet System Alarm Valve

Wet System Alarm Valve

  • PN 16
  • Material
    Ductile iron
  • Nominal diameter
    DN100-200
  • Face to face standard
    Series 3 of BS EN558-1
  • Flange drilling
    BS EN 1092
Features

Multiple Ends Types:flange,groove,threaded.


Connected Flange complies with ASME B16.1 Class 125and EN 1092-2 PN 10/16.(Other Flange and Groove Types available upon request).


Excellent Flow Characteristics.


Retard chamber and equalizing pipeline used in installations subject to variable pressure to help prevent false alarms.


For use in Wet Pipe Fire Protection Systems.


Alarm Check Valves should be installed vertically.


FM 1041 Approved. CCCF and TS Certified.


Rated Working PressurePN 16.


Fusion Bonded Epoxy Coated Interior and Exterior to ANSl/AWWA C550 Standard.

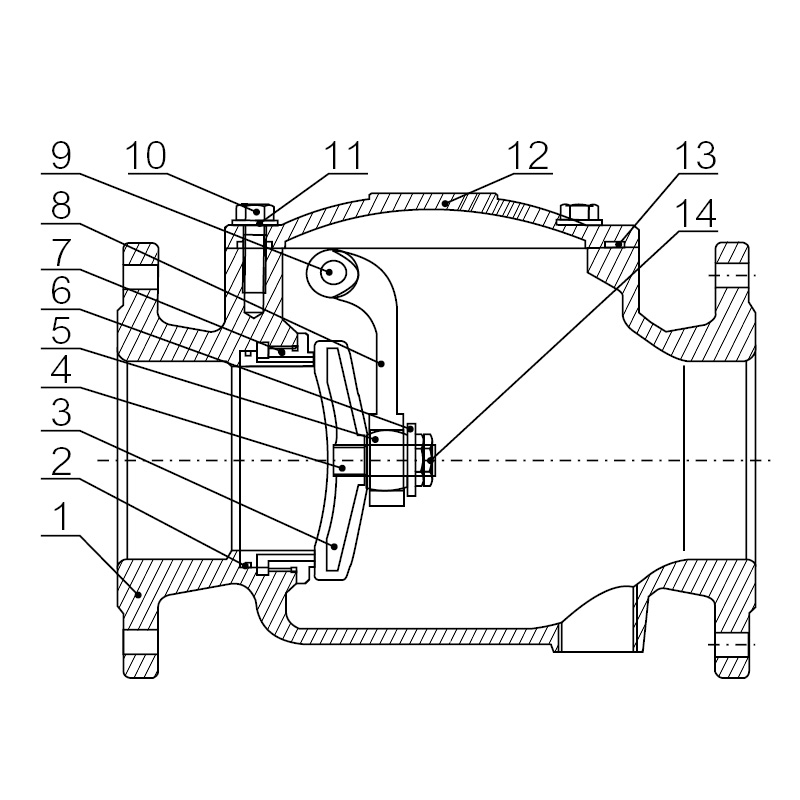

Material

IDX

Part

Material

1

Body

D.I. EN-GJS-500-7

2

O-ring

NBR

3

Disc

Copper Alloy CC331G

4

Screw

Stainless Steel 304

5

Guide Ring

Brass

6

Washer

Copper Alloy CC331G

7

Seat

Copper Alloy CC331G

8

Joint

Copper Alloy CC331G

9

Stem

Stainless Steel 304

10

Bolt

Stainless Steel 304

11

Shim

Stainless Steel 304

12

Bonnet

D.I. EN-GJS-500-7

13

Gasket

NBR

14

Nut

Stainless Steel 304

Main Dimention

  • Type
    L$PN16
    L$PN25
    H$PN16
    H$PN25
    D$PN16
    D$PN25
    K$PN16
    K$PN25
    N-Φ$PN16
    N-Φ$PN25
  • ZSFZ 100
    306
    306
    245
    252
    220
    235
    180
    190
    8-19
    8-23
  • ZSFZ 150
    366
    366
    314
    322
    285
    300
    240
    250
    8-22
    8-28
  • ZSFZ 200
    453
    453
    384
    394
    340
    360
    295
    310
    12-23
    12-28
  • Type
    L
    H
    A
    B
  • ZSFZ 100
    306
    232
    114
    109
  • ZSFZ 150
    366
    303
    165
    160
  • ZSFZ 200
    453
    383
    219
    214
