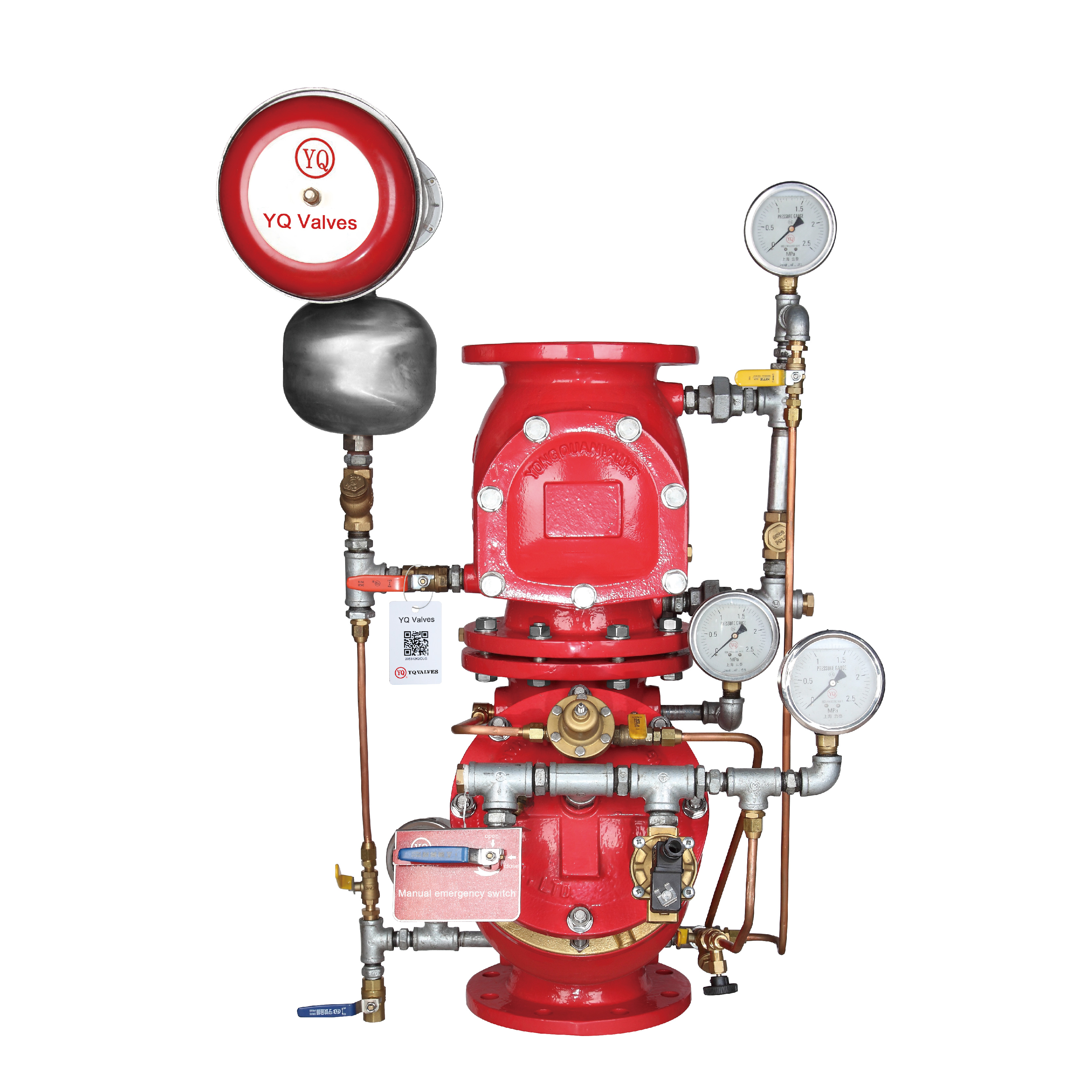

Piston Type Preacting Alarm Valve Assembly

Piston Type Preacting Alarm Valve Assembly

  • PN 16/25
  • Material
    Ductile iron
  • Nominal diameter
    DN100-200
  • Face to face standard
    Series 3 of BS EN558-1
  • Flange drilling
    BS EN 1092
Features

Multiple Ends Types:fange,groove,threaded.


Connected Flange complies with ASME B16.1 Class125 and EN 1092-2 PN 10/16.(Other Flange and Groove Types available upon request)


Excellent Flow Characteristics.


Retard chamber and equalizing pipeline used ininstallations subject to variable pressure to help preventfalse alarms.


For use in Wet Pipe Fire Protection Systems.


Alarm Check Valves should be installed vertically.


FM 1041 Approved. CCCF and TS Certified.


Rated Working Pressure: PN16.


Material

No.

Part

Material

1

Body

D.I. EN-GJS-500-7

2

Guide

Copper Alloy CC331G

3

O-ring

NBR

4

Seat

Stainless Steel 304

5

Gasket

NBR

6

Disc

Copper Alloy CC331G

7

Stem

Stainless Steel 304

8

Hexagon Nut

Stainless Steel 304

9

Spring

Stainless Steel 631

10

O-ring

NBR

11

Y-ring

NBR

12

Stud

Stainless Steel 304

13

Nut

Stainless Steel 304

14

Bonnet

D.I. EN-GJS-500-7

15
Hexagon Nut
Stainless Steel 304
16
O-ring
NBR
17
Cylinder Body
Copper Alloy CC331G
18
Piston
Copper Alloy CC331G
19
Rocker
Copper Alloy CC331G
20
Guide Ring
Brass
21
Double Head Screw
Stainless Steel 304
22
Gasket
NBR

from clipboard

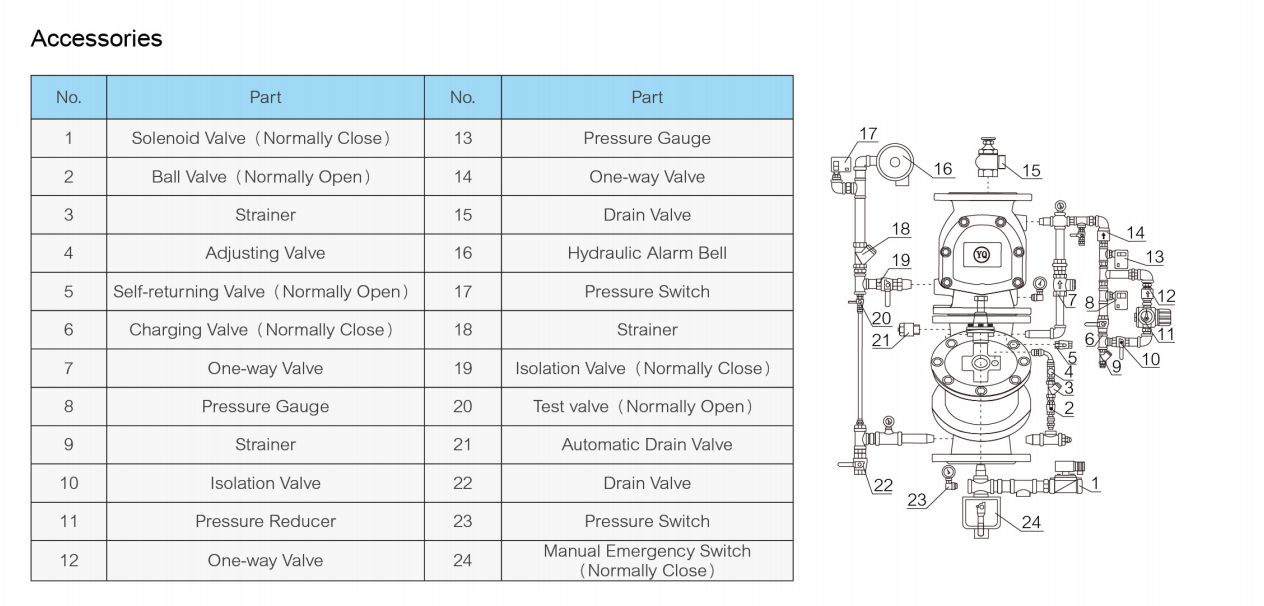

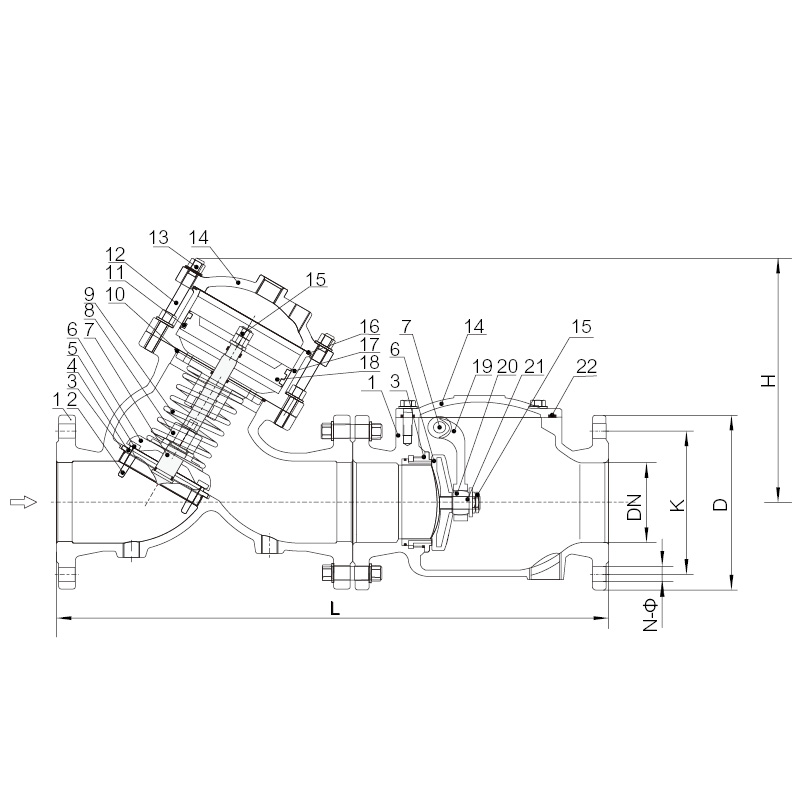

Main Dimention

  • DN
    L$PN16
    L$PN25
    H$PN16
    H$PN25
    D$PN16
    D$PN25
    K$PN16
    K$PN25
    N-Φ$PN16
    N-Φ$PN25
  • 100
    656
    656
    260
    260
    220
    235
    180
    190
    8-19
    8-23
  • 150
    816
    816
    350
    350
    285
    300
    240
    250
    8-22
    8-28
  • 200
    1003
    1003
    477
    477
    340
    360
    295
    310
    12-23
    12-28
