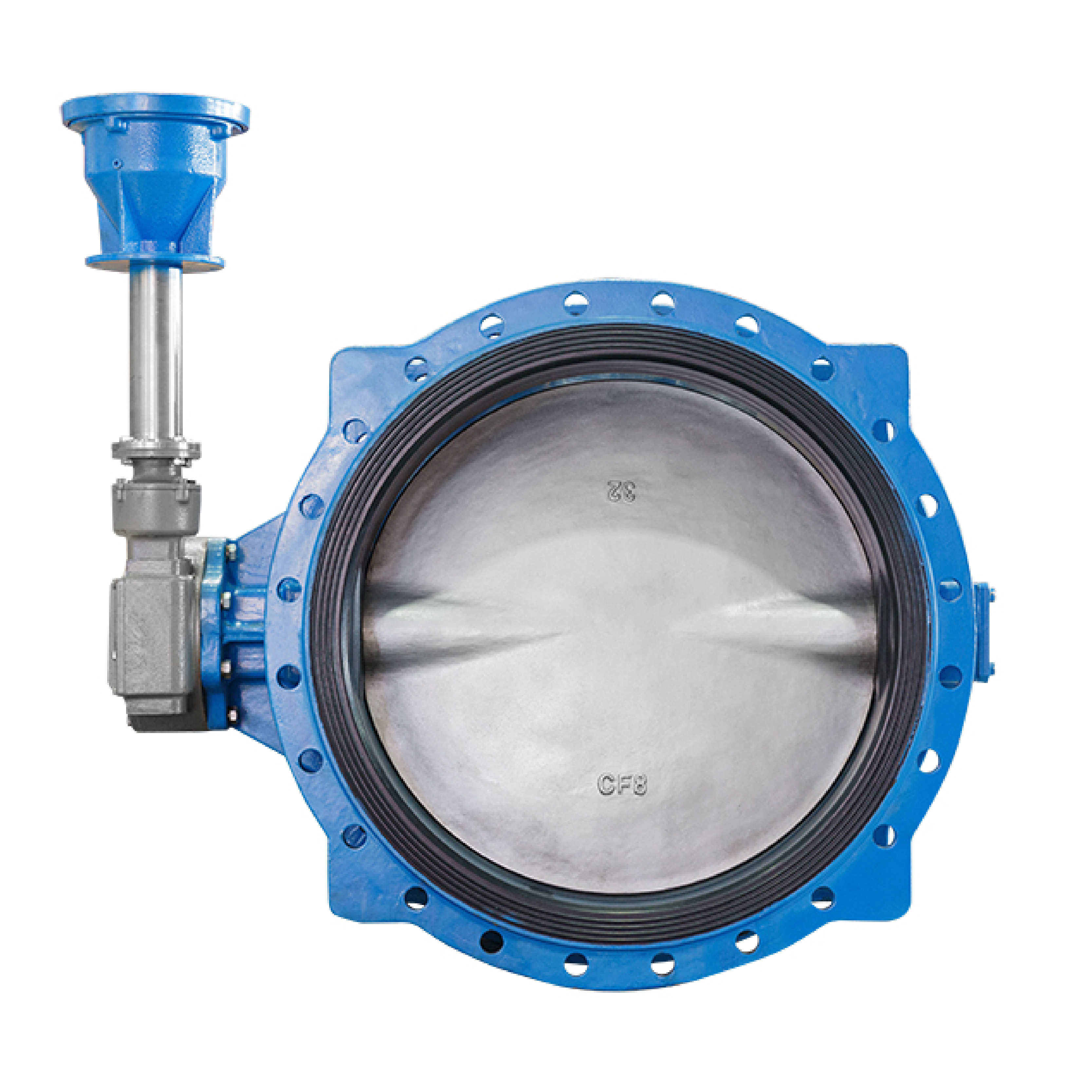

Worm Gear Operated Concentric Rubber Lined Butterfly Valve with Extension Spindles

Worm Gear Operated Concentric Rubber Lined Butterfly Valve with Extension Spindles

  • PN 10/16
  • Material
    Ductile iron
  • Nominal diameter
    DN100-1000
  • Face to face standard
    Series 3 of BS EN558-1
  • Flange drilling
    BS EN 1092
Features

Equipped with an extension spindles and surface box according to the customer's given burial depth size.


Applied to buried pipelines to reduce the construction investment of valve expenses.


Material

Part

Material

Specification

Body

Ductile iron

D.I. EN-GJS-450-10

Seat

Rubber

EPDM

Disc

Ductile iron

D.I. EN-GJS-450-10

Bushing

Brass

ZCuZn38Mn2Pb2

Shaft

Stainless steel

SS 1.4021

Liner

Rubber

EPDM

Plug

Stainless steel

SS 1.4021

from clipboardfrom clipboard


from clipboard

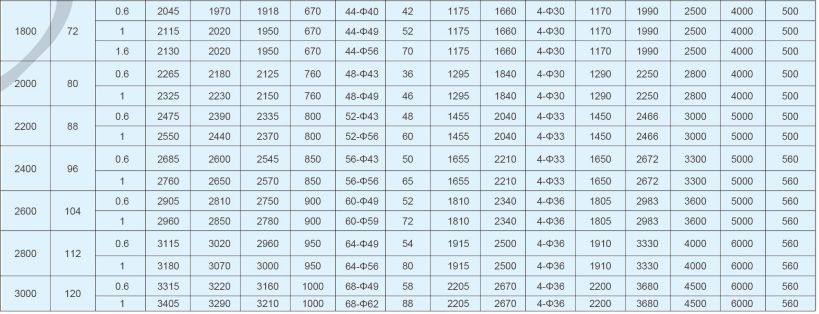

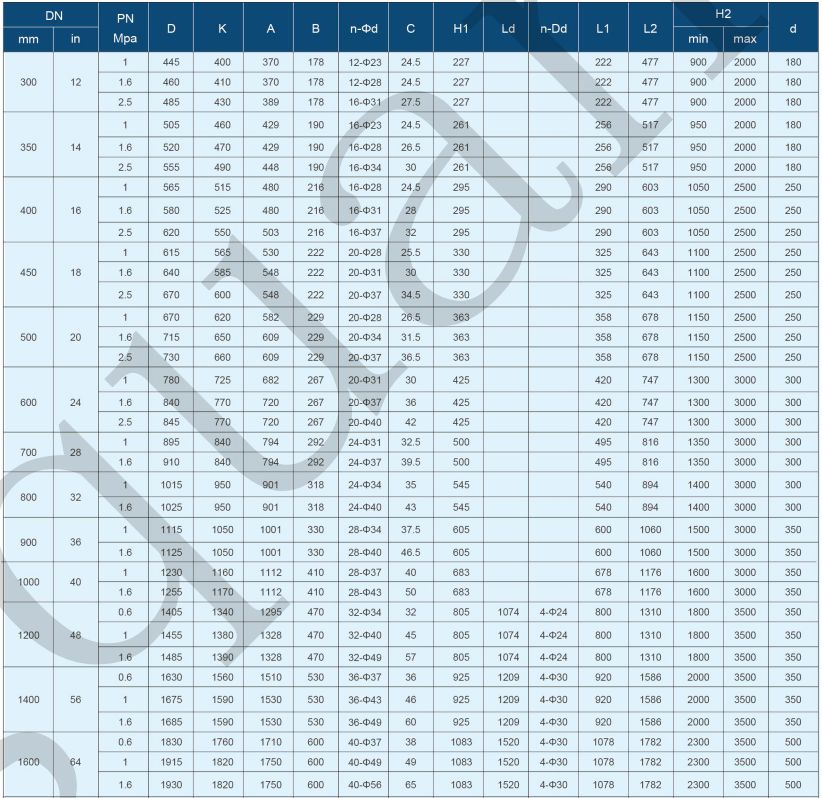

Main Dimention
