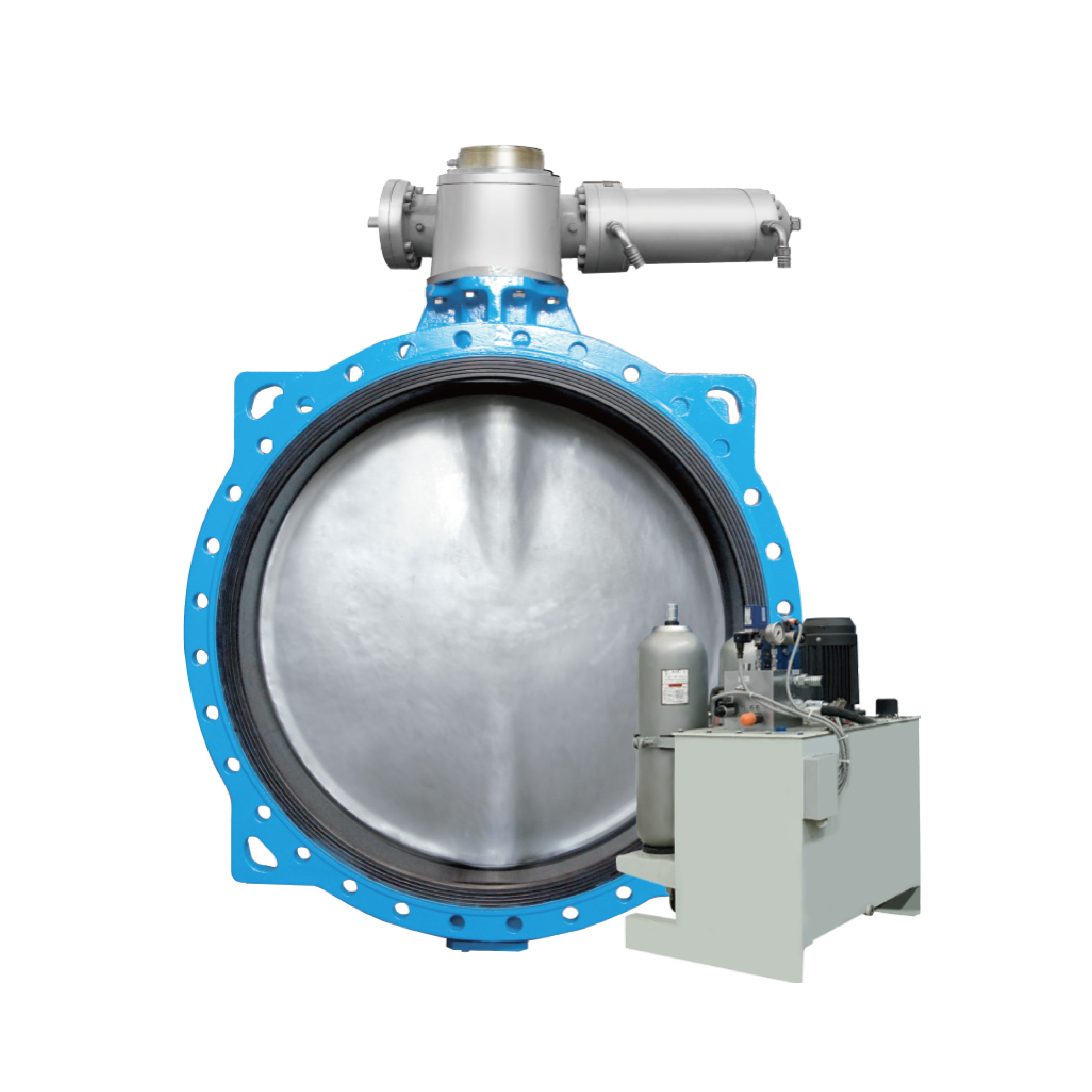

Hydraulic Controlled Butterfly Valve

Hydraulic Controlled Butterfly Valve

  • PN 16/25
  • Material
    Ductile iron
  • Nominal diameter
    DN40-3000
  • Face to face standard
    Series 3 of BS EN558-1
  • Flange drilling
    BS EN 1092
  • Document Download.pdf
Features



Material

Part

Material

Specification

Body

Ductile iron

D.I. EN-GJS-450-10

Seat

Rubber

EPDM

Disc

Ductile iron

D.I. EN-GJS-450-10

Bushing

Brass

ZCuZn38Mn2Pb2

Shaft

Stainless steel

SS 1.4021

Liner

Rubber

EPDM

Plug

Stainless steel

SS 1.4021


from clipboardfrom clipboardfrom clipboard

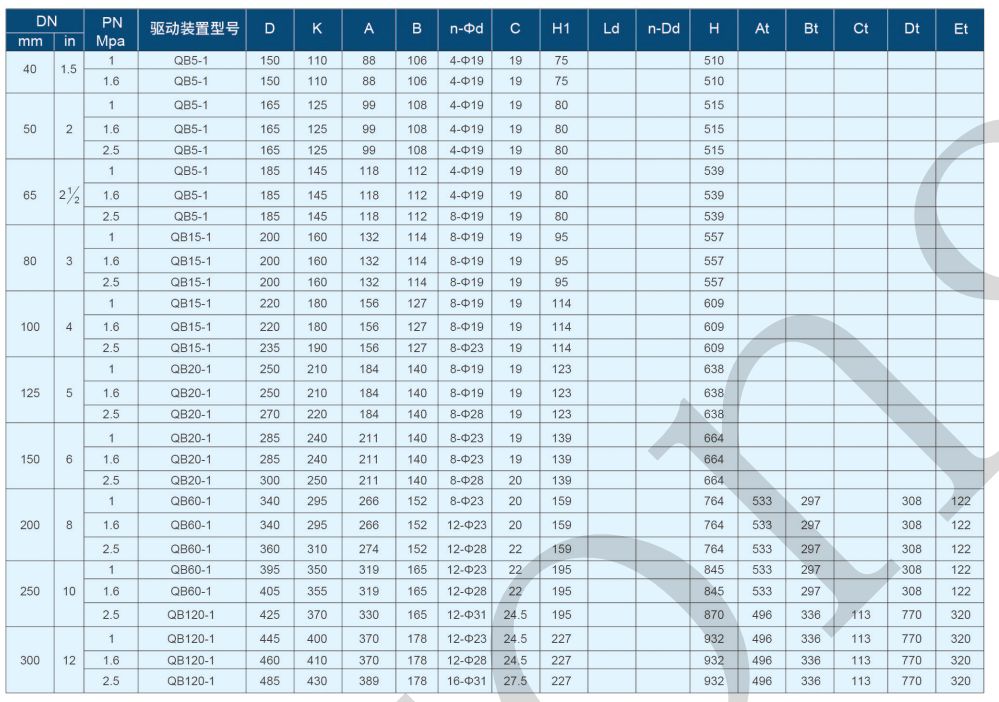

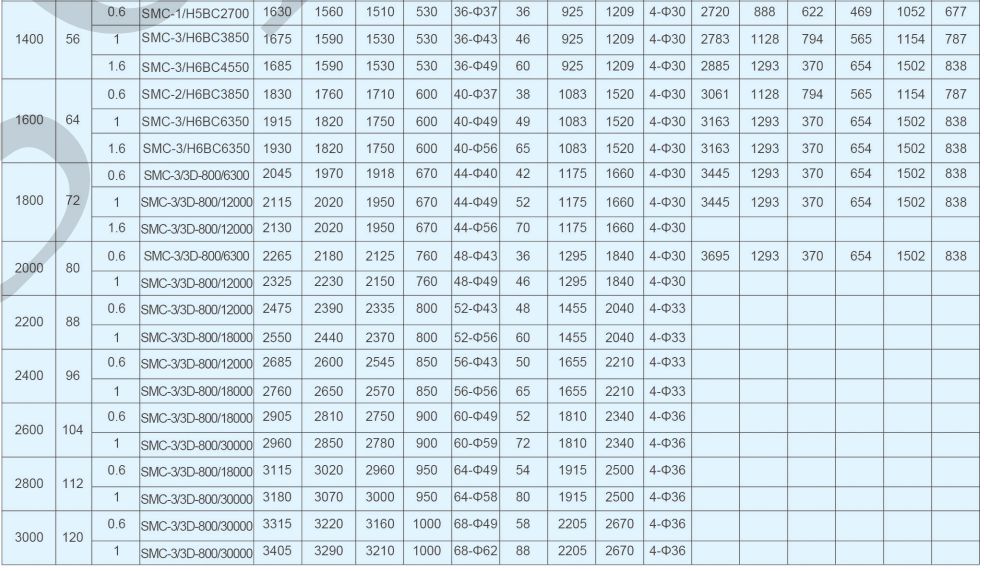

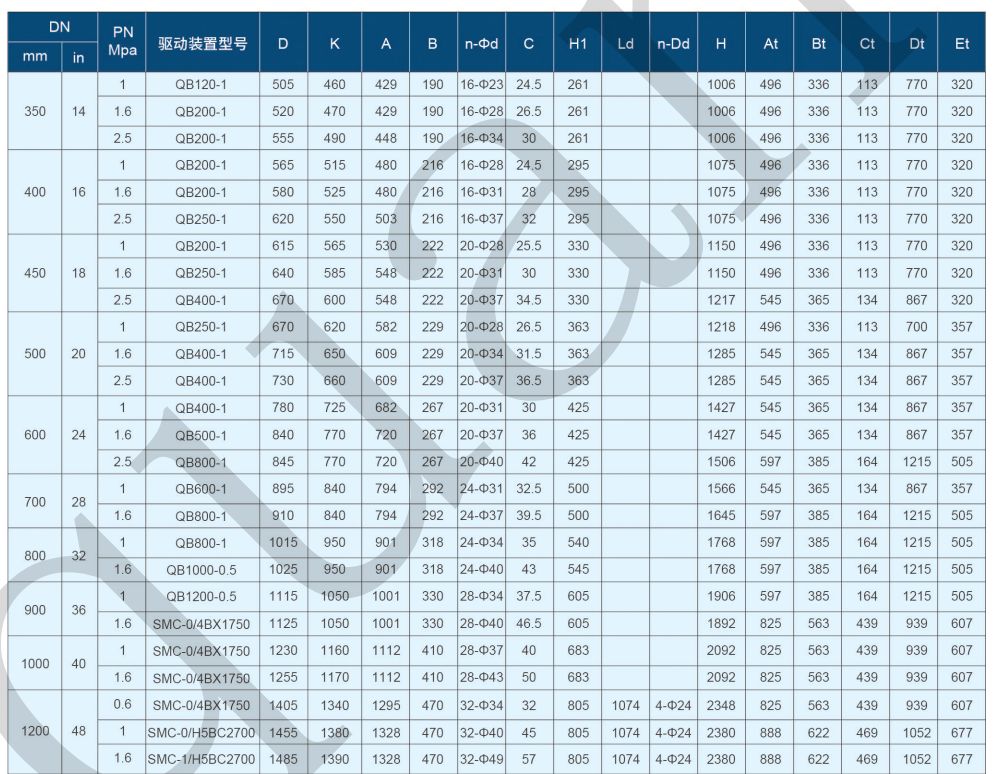

Main Dimention
