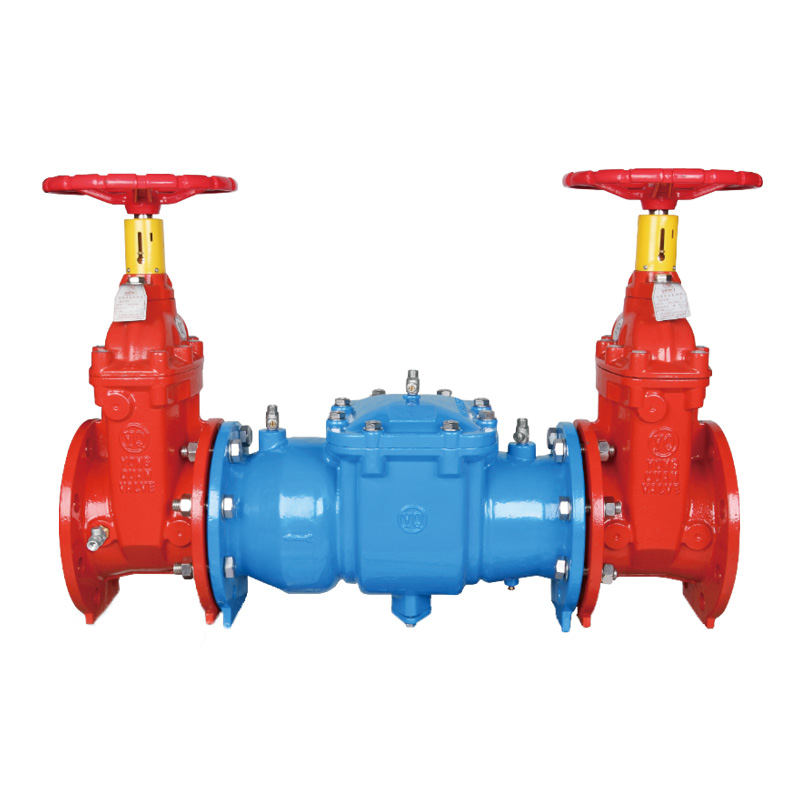

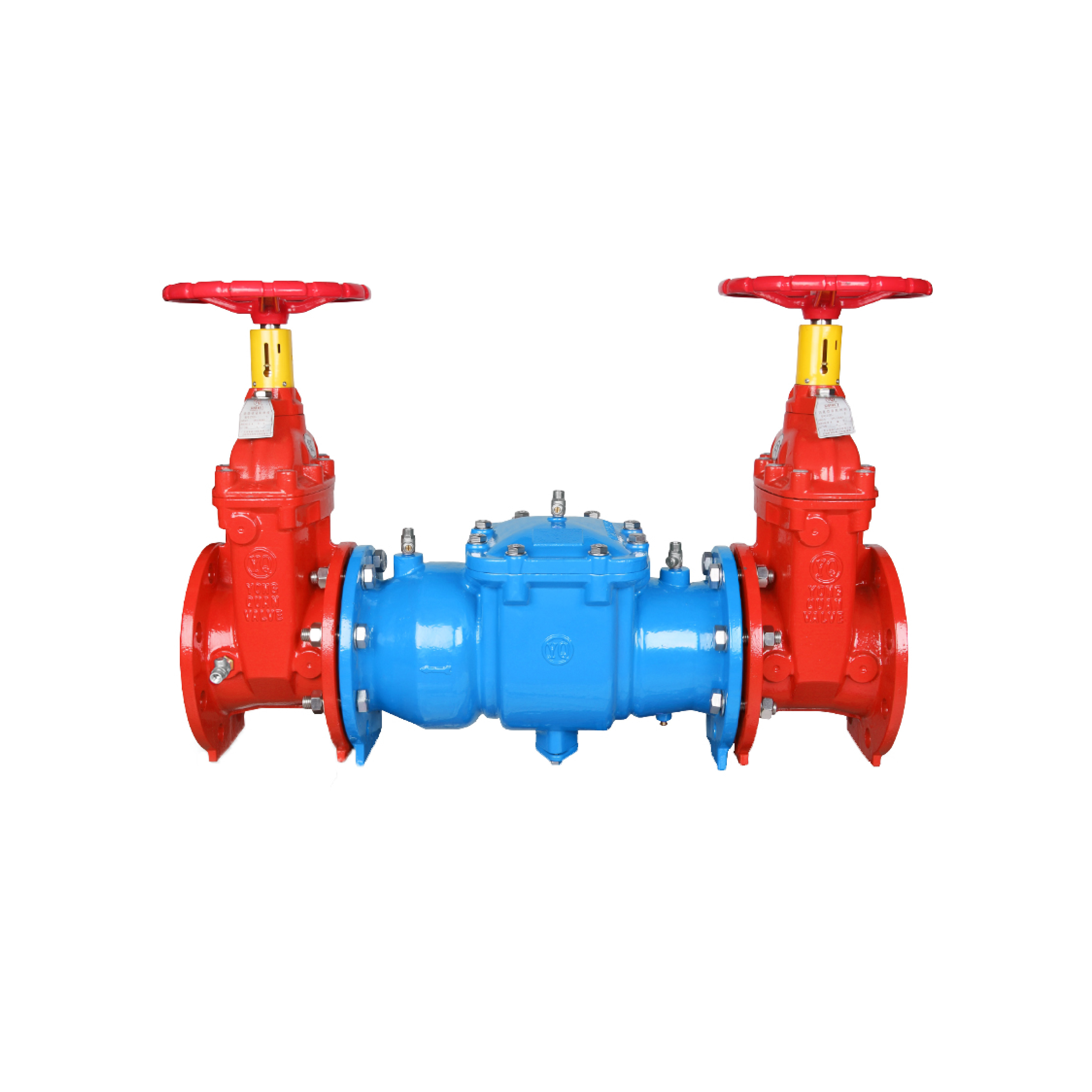

Double Check Backflow Preventer

Double Check Backflow Preventer

  • PN 10/16
  • Material
    Ductile iron
  • Nominal diameter
    DN65-400
  • Face to face standard
    Series 3 of BS EN558-1
  • Flange drilling
    BS EN 1092
Features

Meet or exceed the requirements of AWWA C511、AS/NZS 2845.1 and C/T 160 Standard.


High-grade protection,maximum prevention of siphon backflow and back pressure backflow.


Through way type of construction,wide body,design of dual Independent check valve,assures the stability of the working condition.


Nice appearance,internal parts made of stainless steel,high strength.good corosion resistance.


Streamline Design of main valve disc makes the friction are sistance of overcurrent is small,ensures low pressureloss at the highest flow rate.


Flanged,compact structure,horizontal or verticalinstallation.


Ductile lron complies with ASTM、A536 and GBStandard,Fusion Bonded Epoxy Coated Interior and Exterior to ANSI/AWWA C550 Standard.


Wide valve chamber,light weight,convenient for installation,testing,and maintenance of check valves.


Gate valve with Bucket Strainer can prevent impurities from entering the body,reduce the wear of internal parts.


Material

Part

Material

Specification

Body

Ductile iron

EN-GJS-450-10

Check valve spring

Stainless steel


Check valve stem

Stainless steel

304

Bonnet

Ductile iron

EN-GJS-450-10

Circlip

Stainless steel

304

Check valve seat

EPDM Fully Encapsulated Stainless steel

Check valve disc

EPDM Fully Encapsulated Stainless steel

Main Dimention

  • DN$mm
    inch
    A$mm
    B$mm
    C$mm
    D$mm
    F$mm
    Φ$mm
    PN10
    PN16
    W$kg
  • 65
    2-1/2
    619
    279
    170
    185
    315
    200
    4-19
    4-19
    59.5
  • 80
    3
    691
    331
    180
    200
    365
    240
    8-19
    8-19
    76.5
  • 100
    4
    795
    415
    190
    220
    400
    280
    8-19
    8-19
    106.5
  • 150
    6
    950
    530
    210
    285
    505
    280
    8-23
    8-23
    170
  • 200
    8
    1105
    645
    230
    340
    595
    360
    8-23
    12-23
    255.5
  • 250
    10
    1250
    750
    250
    400
    675
    360
    12-23
    12-28
    449.5
  • 300
    12
    1400
    860
    270
    455
    792
    450
    12-23
    12-28
    624.5
  • 350
    14
    1568
    985
    290
    515
    895
    450
    16-23
    16-28
    742.5
  • 400
    16
    1720
    1100
    310
    575
    1010
    450
    16-28
    16-31
    1025.5
